Radio Access Network (RAN) Products

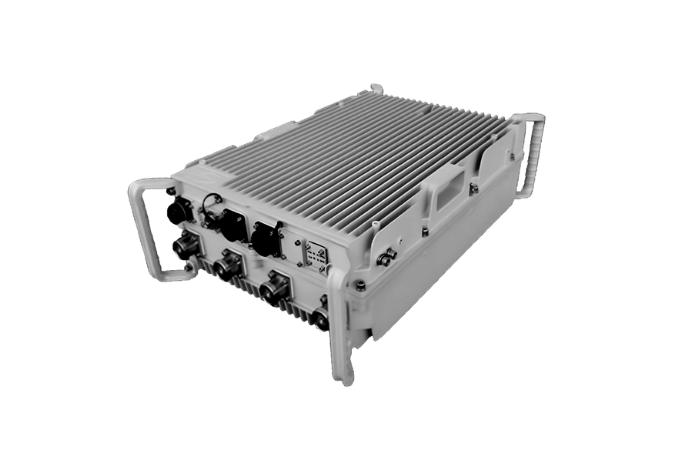

4G Macro RRH

A high-performance LTE FDD/TDD radio unit designed for macro network deployments, supporting 700/900/1800/2100/2600 MHz bands with external array antennas.

  • Bandwidth : Up to 40 MHz
  • No. of Carriers : 1
  • RF Output Power :40W per port
  • Compact & Efficient : Easy to install, manage, and upgrade while ensuring energy efficiency.

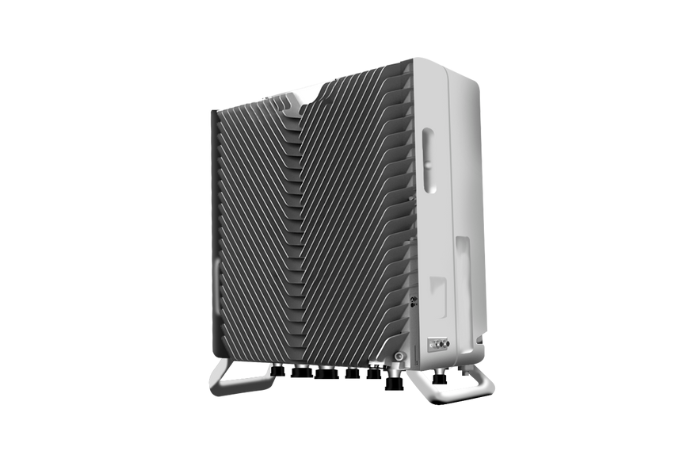

5G Macro RRH

Designed for rural and quasi-rural 5G deployments, supporting TDD N78 and N41 bands with external beamforming array antennas.

  • Bandwidth : 20/40/50/80/100 MHz
  • Fronthaul : 2 × 25 Gbps SFP+, eCPRI, O-RAN Split 7.2x CAT-A/B
  • Scalable : Supports 1 carrier (upgradable to 2)
  • RF Output Power : 10W to 40W per port

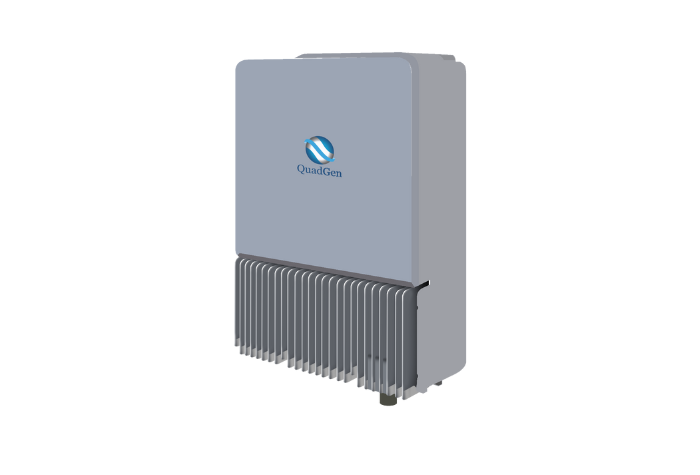

5G Micro gNB

A lightweight and compact small-cell radio unit, optimized for rural and quasi-rural 5G deployments in TDD N78 and N41 bands.

  • Bandwidth : : 20/40/50/80/100 MHz
  • Fronthaul : : 4 × 10 Gbps SFP+, O-RAN Split 7.2x CAT-A/B
  • Integrated Antenna : : 48 Antenna Elements with 17 dBi gain
  • RF Output Power : : 5W per port

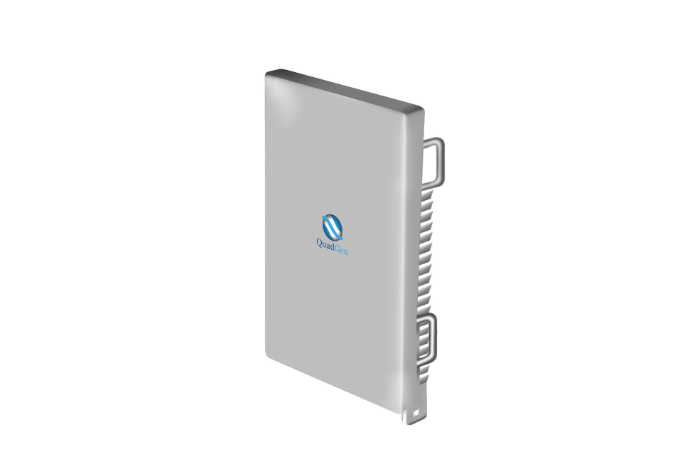

5G AIO gNB (All-in-One Massive MIMO gNB)

An advanced mMIMO solution combining Adaptive Antenna Array, Radio, and Baseband Unit for 5G TDD deployments.

  • Bandwidth :20/40/50/80/100 MHz
  • Fronthaul : 10 Gbps SFP+
  • Integrated Antenna : 24 Antenna Elements with 14 dBi gain
  • RF Output Power : 10W per port

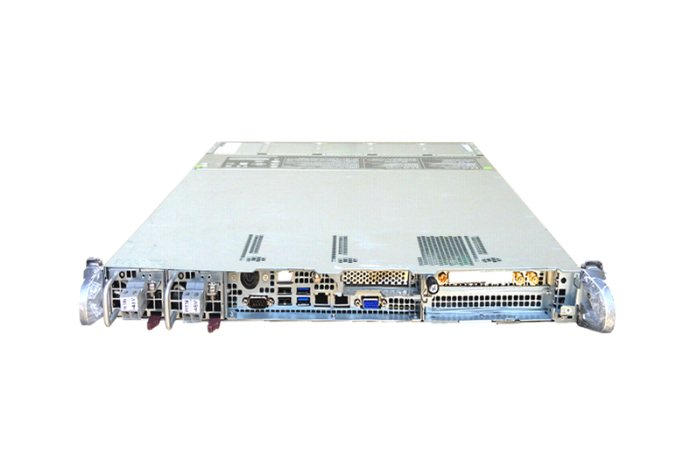

Baseband Unit (BBU)

A high-capacity 4G/5G baseband unit supporting SA/NSA architectures with carrier aggregation.

  • Scalability : Supports up to 6 carriers
  • Performance : 1700 Mbps DL / 150 Mbps UL
  • Infrastructure : Hosted on Intel x86 COTS servers, ensuring portability and adaptability for modern deployments.
